Does anyone have a wire diagram

S

scotthall1515

Member
Location
baltimore
I'm hooking up Audi style lights and I need to know where the turn signal wires from the switch are . I can get the ones under the hood but I need the ones off the switch so that lights turn off when I hit the turn signal and not just blink with the turn signal help please

Sent from my HTCONE 4 Beta

PMG 705 said:
Like in the link I gave? Lol The actual wires/pins in the BCU are identified there.



TapaTalkin'
Click to expand...

Thanks pmg now the two wires in the passenger bcm when you put a meter on them is it a constant signal as long as the turn signal is activated or is it a pulsing signal.

Sent from my HTCONE 4 Beta

If you're connecting turn signal leds then those pins will work. On along with your other turn signals. I would imagine it would be a constant signal, easy to check once you're there.



TapaTalkin'


Sent from my HTCONE 4 Beta

---------- Post added at 10:07 PM ---------- Previous post was at 10:05 PM ----------

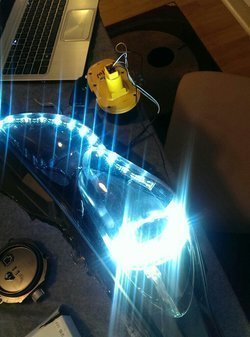

Started the lights 6u5u7eza.jpg

Sent from my HTCONE 4 Beta


Attachments

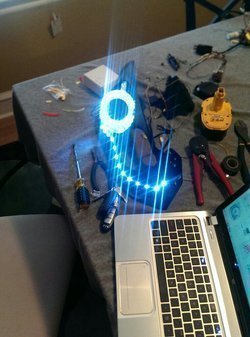

  • eza2u2ah.jpg
    145.8 KB · Views: 6
  • 6u5u7eza.jpg
    143.8 KB · Views: 8
PMG 705 said:
Noice... very very nice
Click to expand...

Hey you wouldn't know where the factory Bose amp and the wires for that do you

Sent from my HTCONE 4 Beta

---------- Post added at 12:32 AM ---------- Previous post was at 12:32 AM ----------
scotthall1515 said:
Hey you wouldn't know where the factory Bose amp and the wires for that do you

Sent from my HTCONE 4 Beta
Click to expand...

Oh and thanks have more pictures coming

Sent from my HTCONE 4 Beta
